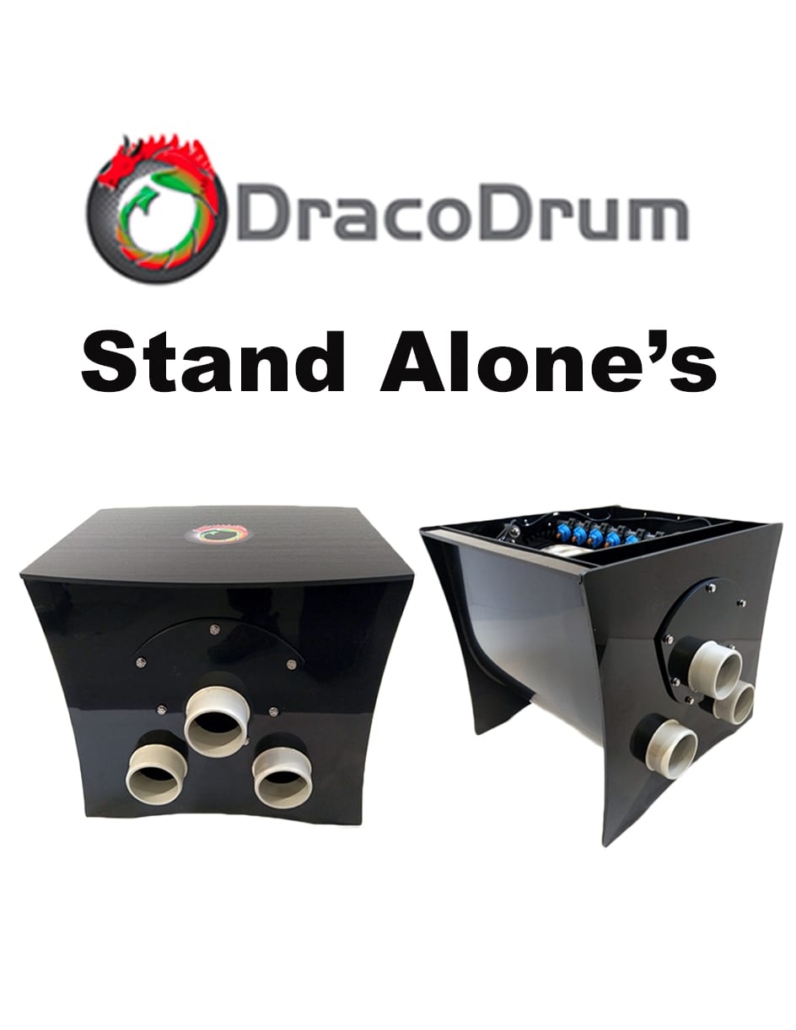

DracoDrum Stand Alone

DracoDrum – Stand Alone’s

The Solum – Standalone Range

The engineering and understanding of how filtration works was developed to produce the stand alone range of filters.

As with the ‘Drop-in’ range these have some unique features to help eliminate dead spots that are usually found in standalone’s.

These units are pretty enough for you not to want to hide them away.

All Models

• • The remotely sited controller has start / emergency stop buttons and a knob allowing you to change the length of wash. LED indicator shows the length of time between washes in minutes. It also has 2 leads – one to plug in to the mains supply (110v and 230v, auto selectable) and one to plug in to the drum. Status of the unit is via 4 colour coded LEDs, it couldn’t be made any simpler than that.

• • Low voltage, sealed water valves and drive units utilising an extremely low geared direct drive system mean that only 12 volts is anywhere near your pond water.

• • Designed to run without a noisy and power hungry wash pump in most circumstances (they are available if required) . On standby the unit can use less than 12 watts and in full wash mode, use 35 watts. It is entirely possible to run it off a car battery for prolonged periods of time.

SOLUM 16

• Dimensions – 610mm wide x 560mm long x 581mm depth
• Height above water level – 180mm
• Capacity – 3,000 Imp gallons per hour / 16,000 litres per hour (in gravity mode, pump fed less 25%)Pond Volume – Approx 7,500 UK gallons
• Twin 4” inlet and outlets
• Easily removable Bypass plates
• RRP £1430

SOLUM 25

• Dimensions – 610mm wide x 610mm long x 581mm depth
• Height above water level – 180mm
• Capacity – 5,500 Imp. Gallons per hour / 25,000 litres per hour (in gravity mode, pump fed less 25%)Pond Volume – Approx 10,000 UK gallons
• Twin 4” inlet and outlets
• Easily removable Bypass plates
• RRP £1700

SOLUM 70

• Dimensions – 738mm wide x 677mm long x 848mm depth
• Height above water level – 153mm
• Capacity – 15,400 Imp. Gallons per hour / 70,000 litres per hour (in gravity mode, pump fed less 25%
• Pond Volume – Approx 16,000 UK gallons
• 4 X 4” inlets and 3 x 4″ outlets with an extra 2″ out for direct pump (other layouts can be specified)
• Drum mounted bypass plate
• 58µm screen
• RRP £2879
