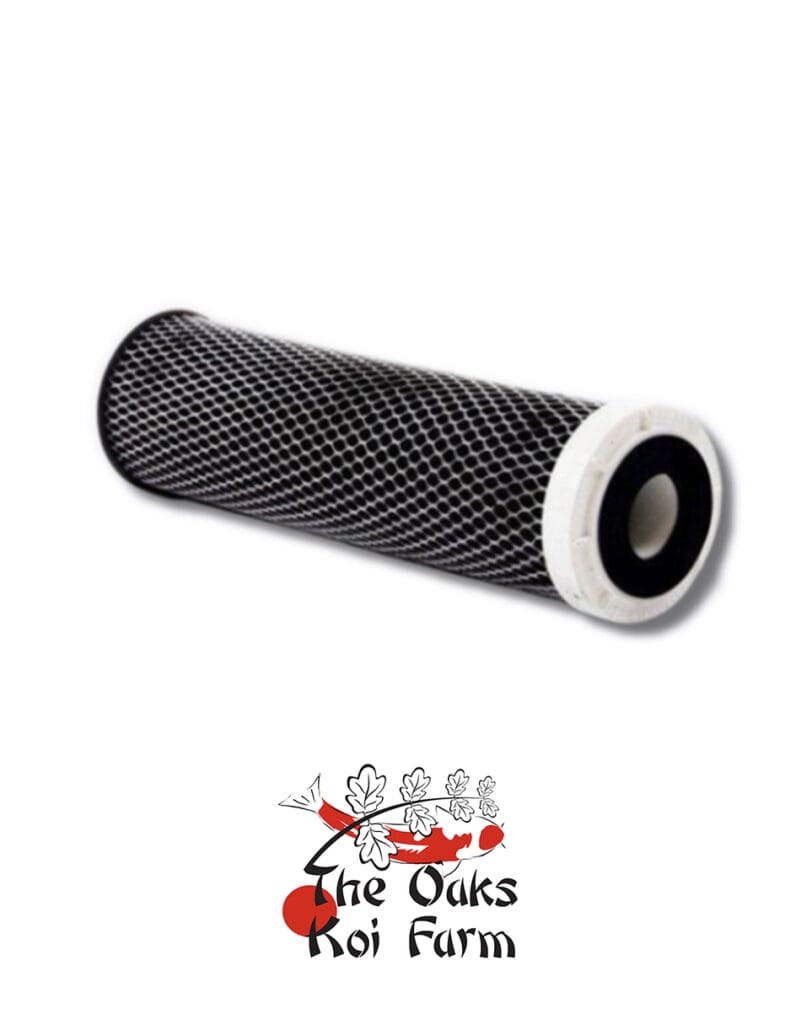

Vyair Economic Carbon Block Filter 10″ x 2.5″

• Constructed with safe, food grade materials in Industry standard sizes
• Maintains a good standard of filtration with low pressure drops
• Protected from sediment binding with a cartridge wrap
• Gaskets ensure a secure seal

This Carbon cartridge is constructed with solely activated bituminous carbon to provide a good level of efficient filtration for applications in drinking water, reverse osmosis and aquatics.

Carbon blocks are a wide used choice for the reduction and removal of chlorine, VOCs, heavy metals such as lead, mercury, copper, caesium and strontium whilst reducing water hardness. They also improve the taste and odour of drinking water. Supplied water penetrates the block from its outer surface to the core. Removed compounds are held on its surface while purified water passes through to the inside of the block.

General Specification

• Operating Temperature °C (°F) – 2 – 80 (35 – 175)
• Operating Pressure psi (bar) – < 90 (< 6)
• Average Life Span – 3 – 4 Months
• Average Efficiency – 90%
• Micron Size µ – 5
• Media – Activated bituminous Carbon
• End Cap Material – Polypropylene (PP)
• Gasket Material – Silicone
• Netting Material – Low Density Polyethylene (LDPE)

Rated Capacity G (l)

• 10″ x 2.5″ – 4,200 (16,000)
